SpringBoot简易整合Shiro

创建SpringBoot项目

在创建项目时添加以下依赖项:

image-20210823204505806

添加依赖项

1
2
3
4
5
6
7
8
9
10
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-spring</artifactId>
<version>1.7.1</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.4.3.1</version>
</dependency>

向MySQL中添加数据

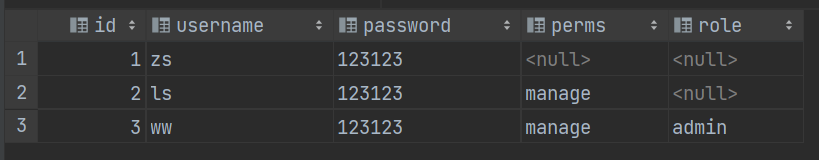

项目中用到的具体数据数据如下图所示,为了减少项目复杂性,把用户、角色、权限全部整合到了user表上:

image-20210823210913360

生成该表的user.sql文件内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
-- MySQL dump 10.13  Distrib 8.0.18, for Win64 (x86_64)
--
-- Host: 127.0.0.1 Database: mybatis
-- ------------------------------------------------------
-- Server version 8.0.18
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!50503 SET NAMES utf8mb4 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

--
-- Table structure for table `user`
--

DROP TABLE IF EXISTS `user`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `user` (
`id` int(11) DEFAULT NULL,
`username` varchar(40) DEFAULT NULL,
`password` varchar(40) DEFAULT NULL,
`perms` varchar(20) DEFAULT NULL,
`role` varchar(255) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `user`
--

LOCK TABLES `user` WRITE;
/*!40000 ALTER TABLE `user` DISABLE KEYS */;
INSERT INTO `user` (`id`, `username`, `password`, `perms`, `role`) VALUES (1,'zs','123123',NULL,NULL),(2,'ls','123123','manage',NULL),(3,'ww','123123','manage','admin');
/*!40000 ALTER TABLE `user` ENABLE KEYS */;
UNLOCK TABLES;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;

-- Dump completed on 2021-08-23 20:57:12

项目总体结构

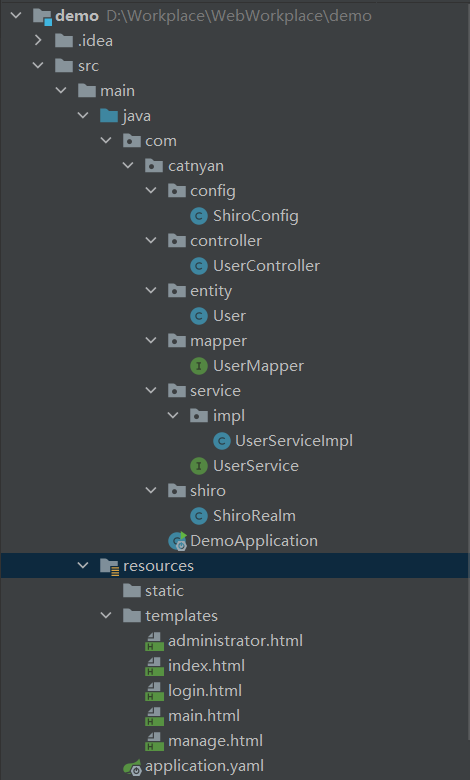

项目结构如下图所示,可按需求自行调整

image-20210823211858140

编写实体类-User

1
2
3
4
5
6
7
8
9
10
import lombok.Data;

@Data
public class User {
private Integer id;
private String username;
private String password;
private String perms;
private String role;
}

编写mapper接口-UserMapper

1
2
3
4
5
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.catnyan.entity.User;

public interface UserMapper extends BaseMapper<User>{
}

编写service类

UserService接口

1
2
3
4
5
import com.catnyan.entity.User;

public interface UserService {
public User findByUsername(String username);
}

UserServiceImpl类(实现了UserService接口)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import javax.annotation.Resource;

@Service
public class UserServiceImpl implements UserService {
@Resource
private UserMapper userMapper;

@Override
public User findByUsername(String username) {
QueryWrapper<User> wrapper = new QueryWrapper<>();
wrapper.eq("username", username);
return userMapper.selectOne(wrapper);
}
}

配置数据源并开启mybatis-plus日志功能

resources文件中创建application.yaml文件,并添加如下配置:

1
2
3
4
5
6
7
8
9
10
11
12
# DataSource Config
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/mybatis?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=GMT%2B8
username: root
password: 123456

# mybatis-plus日志开启
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

MySQL连接测试

请在测试类中检测mapper接口及service接口是否正常工作,测试类代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import com.catnyan.entity.User;
import com.catnyan.mapper.UserMapper;
import com.catnyan.service.UserService;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;

import javax.annotation.Resource;
import java.util.List;

@SpringBootTest
class DemoApplicationTests {
@Resource
private UserMapper userMapper;
@Resource
private UserService userService;

@Test
void mapper() {
List<User> users = userMapper.selectList(null);
users.forEach(System.out::println);
}

@Test
void service() {
User user = userService.findByUsername("zs");
System.out.println(user);
}

}

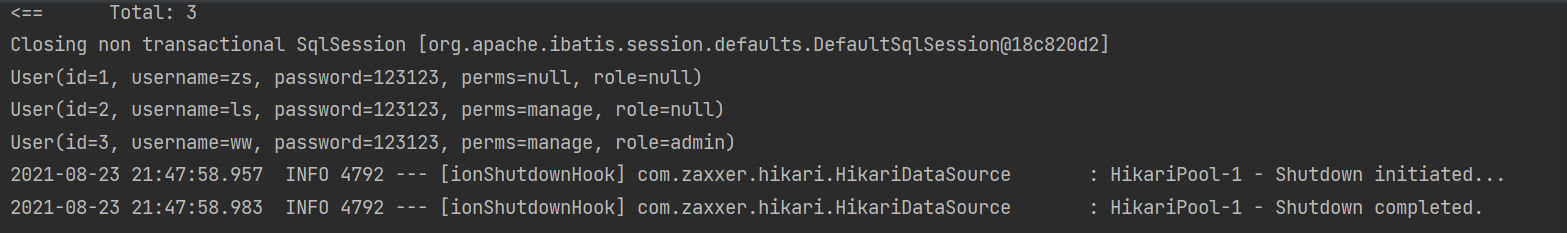

UserMapper接口预期结果

image-20210823214839427

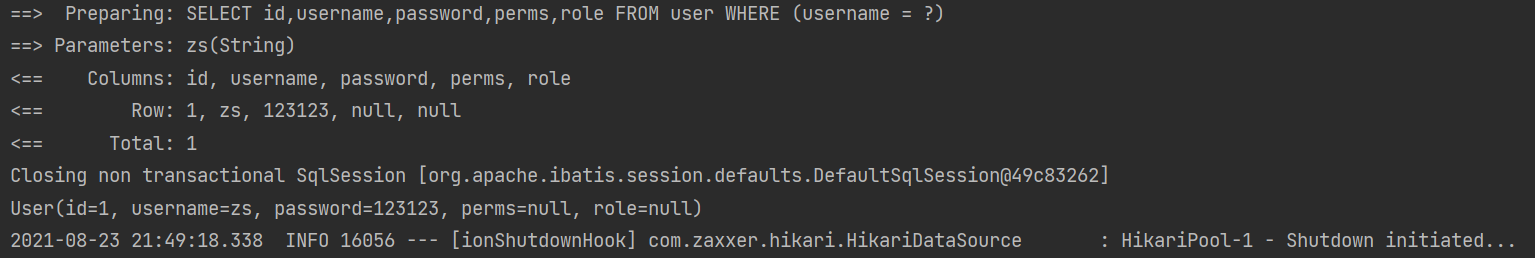

UserService接口预期结果

image-20210823215002310

如果以上预取结果全部实现,则可继续剩余流程,否则请检查代码是否正确

编写自定义Realm-ShiroRealm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
import com.catnyan.entity.User;
import com.catnyan.service.UserService;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.apache.shiro.subject.Subject;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.util.HashSet;
import java.util.Set;

@Component
public class ShiroRealm extends AuthorizingRealm {
@Resource
private UserService userService;

@Override
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
//获取当前登录的用户信息
Subject subject = SecurityUtils.getSubject();
User user = (User) subject.getPrincipal();
//设置角色
Set<String> roles = new HashSet<>();
roles.add(user.getRole());
SimpleAuthorizationInfo info = new SimpleAuthorizationInfo(roles);
//设置权限
info.addStringPermission(user.getPerms());
return info;
}

@Override
protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
//authenticationToken将由你提交的表单生成,登录信息全部被封装在token中
UsernamePasswordToken token = (UsernamePasswordToken) authenticationToken;
User user = userService.findByUsername(token.getUsername());
if (user != null) {
//密码不正确将会抛出IncorrectCredentialsException
return new SimpleAuthenticationInfo(user,user.getPassword(),getName());
}
//未找到用户记录,将会抛出UnknownAccountException
return null;
}
}

编写shiro配置类-ShiroConfig

认证与授权规则:

认证过滤器

  • anon :无需认证
  • authc :必须认证
  • user :不一定通过认证,只要曾经被 Shiro 记录即可,比如:记住我

授权过滤器

  • perms :必须拥有某个权限才能访问
  • role :必须拥有某个角色才能访问
  • port :请求的端口必须是指定值才可以
  • rest :rest 风格拦截器,自动根据请求方法构建权限字符串
  • ssl :必须是安全的 URL 请求,协议 HTTPS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import com.catnyan.shiro.ShiroRealm;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.LinkedHashMap;

@Configuration
public class ShiroConfig {

@Bean
public ShiroFilterFactoryBean shiroFilterFactoryBean(DefaultWebSecurityManager securityManager) {
ShiroFilterFactoryBean factoryBean = new ShiroFilterFactoryBean();
factoryBean.setSecurityManager(securityManager);
//权限设置
LinkedHashMap<String, String> filterMap = new LinkedHashMap<>();
filterMap.put("/main","authc");
filterMap.put("/manage", "perms[manage]");
filterMap.put("/administrator", "roles[admin]");
factoryBean.setFilterChainDefinitionMap(filterMap);
//设置登录界面
factoryBean.setLoginUrl("/login");
//设置未授权页面
factoryBean.setUnauthorizedUrl("/unauthc");

return factoryBean;
}

@Bean
public DefaultWebSecurityManager defaultWebSecurityManager(ShiroRealm shiroRealm) {
DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
securityManager.setRealm(shiroRealm);
return securityManager;
}
}

编写Web资源

index.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>

<h1>index</h1>
<!--如果登录成功,则显示登录信息-->
<div th:if="${session.user != null}">
<span th:text="${session.user.username}+'欢迎回来'"></span><a href="/logout">退出</a>
</div>
<a href="/main">main</a> | <a href="/manage">manage</a> | <a href="/administrator">administrator</a>

</body>
</html>

login.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>

<h1>Login</h1>
<form action="/login" method="post">
用户名:<input type="text" name="username"><br>
密码:<input type="password" name="password"><br>
<span th:text="${msg}" style="color: red"></span><br>
<input type="submit" value="登录">
</form>

</body>
</html>

main.html

1
2
3
4
5
6
7
8
9
10
11
12
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>

<h1>首页</h1>

</body>
</html>

manage.html

1
2
3
4
5
6
7
8
9
10
11
12
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>

<h1>manage</h1>

</body>
</html>

administrator.html

1
2
3
4
5
6
7
8
9
10
11
12
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>

<h1>administrator</h1>

</body>
</html>

编写controller类-UserController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
import com.catnyan.entity.User;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.IncorrectCredentialsException;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.subject.Subject;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class UserController {

@GetMapping("/{url}")
public String redirect(@PathVariable("url") String url) {
return url;
}

@PostMapping("/login")
public String login(String username, String password, Model model) {
Subject subject = SecurityUtils.getSubject();
UsernamePasswordToken token = new UsernamePasswordToken(username, password);
try {
subject.login(token);
User user = (User) subject.getPrincipal();
subject.getSession().setAttribute("user", user);
return "/index";
} catch (UnknownAccountException e) {
e.printStackTrace();
model.addAttribute("msg", "用户不存在!");
} catch (IncorrectCredentialsException e) {
e.printStackTrace();
model.addAttribute("msg", "密码错误!");
}
return null;
}

/**
* 没有权限时将直接显示错误信息:”未授权,无法访问“
*/
@GetMapping("/unauthc")
@ResponseBody
public String unauthc() {
return "未授权,无法访问";
}

@GetMapping("/logout")
public String logout() {
Subject subject = SecurityUtils.getSubject();
//logout方法将会移除session、principals、authenticated
subject.logout();
return "/login";
}
}

开始测试

上述准备工作全部完成后,就可以开始测试Shiro是否能正常工作了。

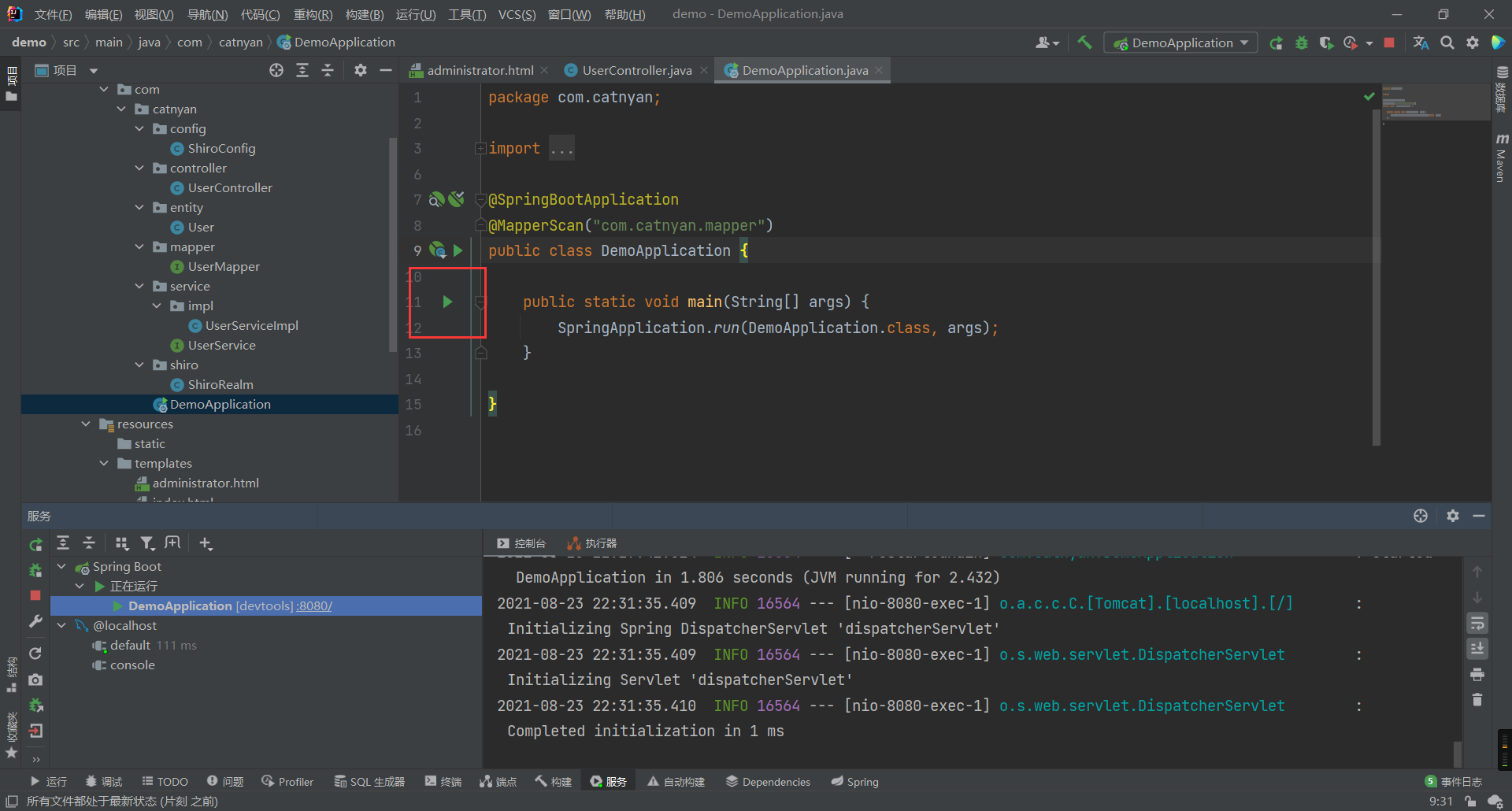

启动项目

image-20210823223435051

进入主界面

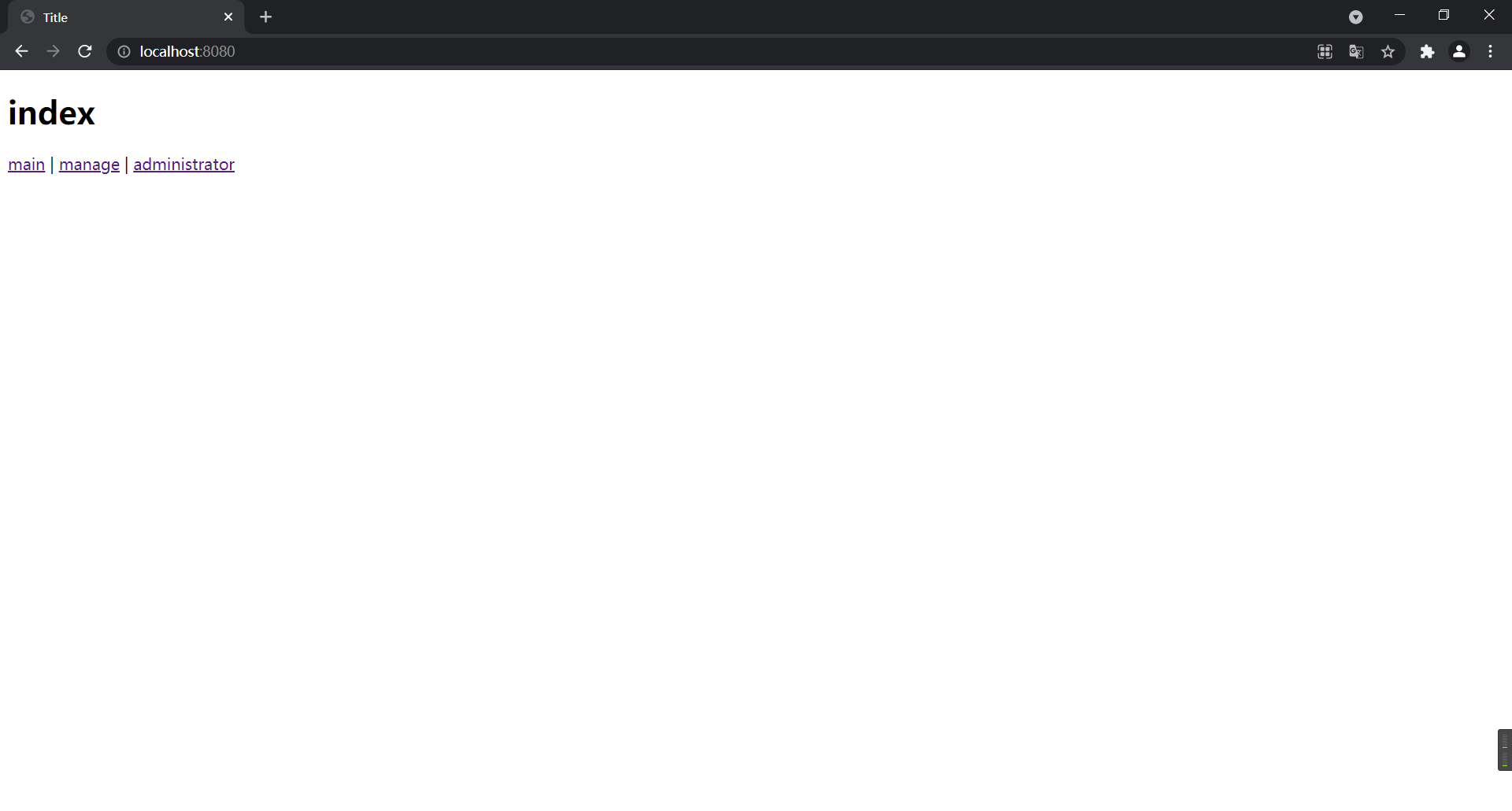

当项目启动成功后,在浏览器中输入localhost:8080,进入主界面如下图所示

image-20210823223636842

未登录状态

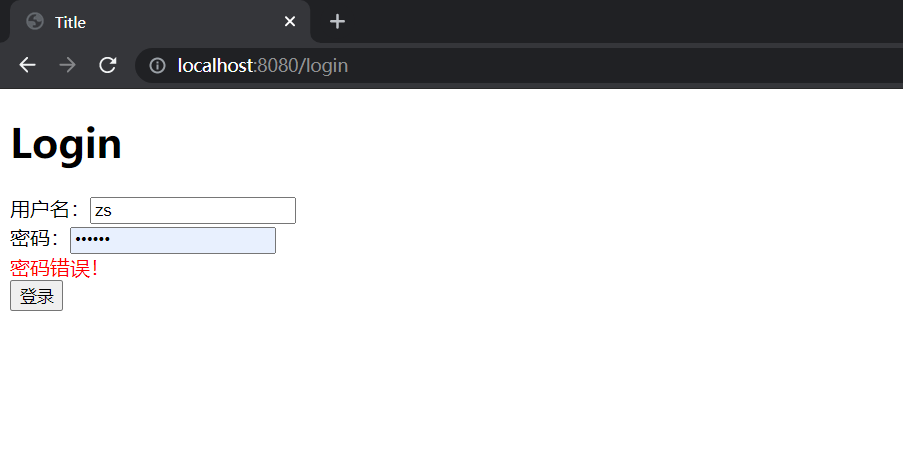

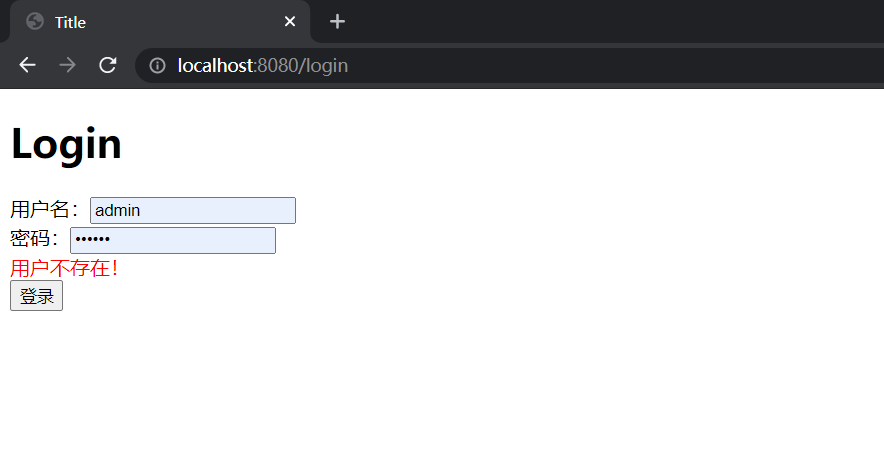

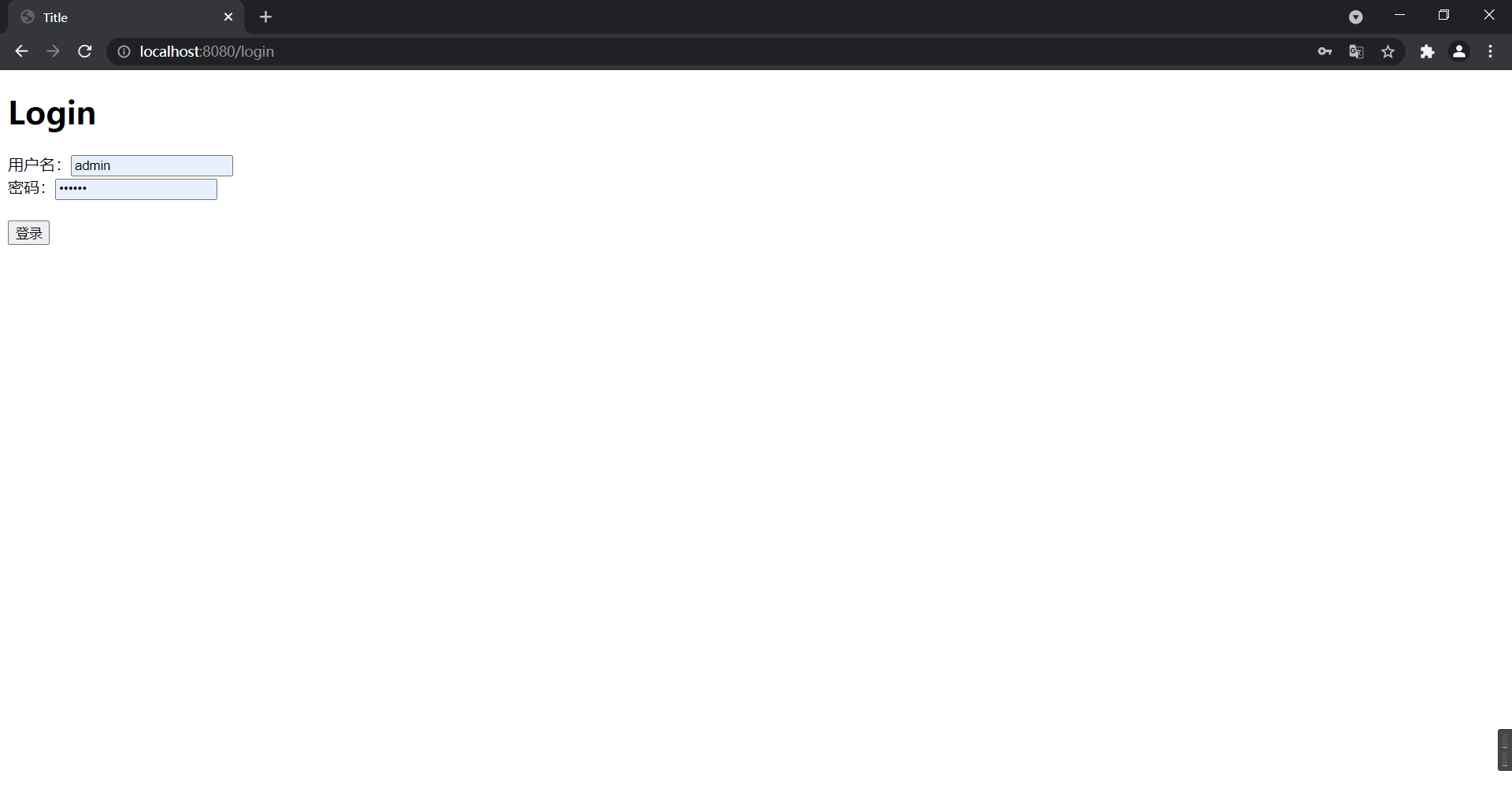

此时你处于未登录状态,点击任意一个连接,都会被重定向到login页面,用户名或密码错误都会抛出异常并将提示信息展示到页面上,只有登录成功后才具有访问某些页面的权限,

image-20210823224020653

image-20210823224244327

image-20210823224529880

登录状态

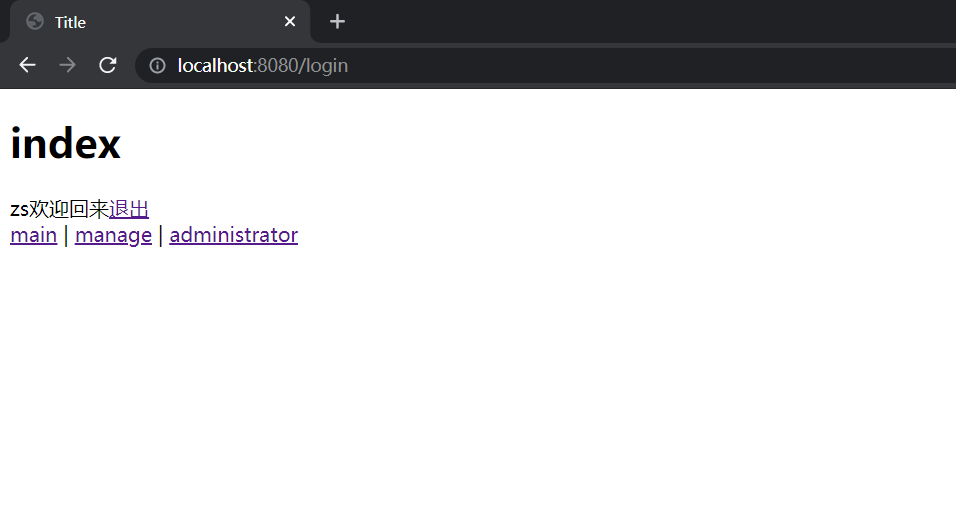

登录成功后将会返回至index页面,并且登录的用户信息也会显示出来

image-20210823224944792

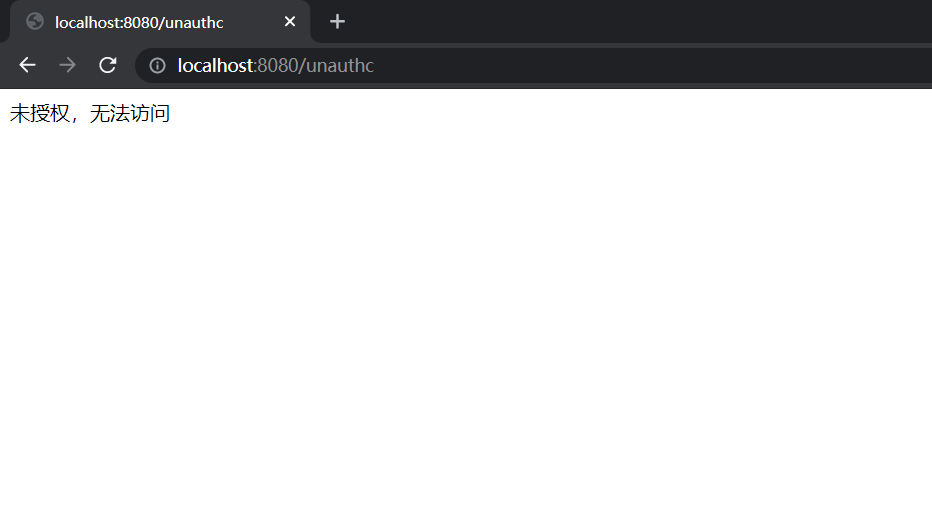

此时用户只具有一部分访问权限,如用户”zs“只能访问main页面,访问其他页面时将会出现提示”未授权,无法访问“

image-20210823225427764

退出登录

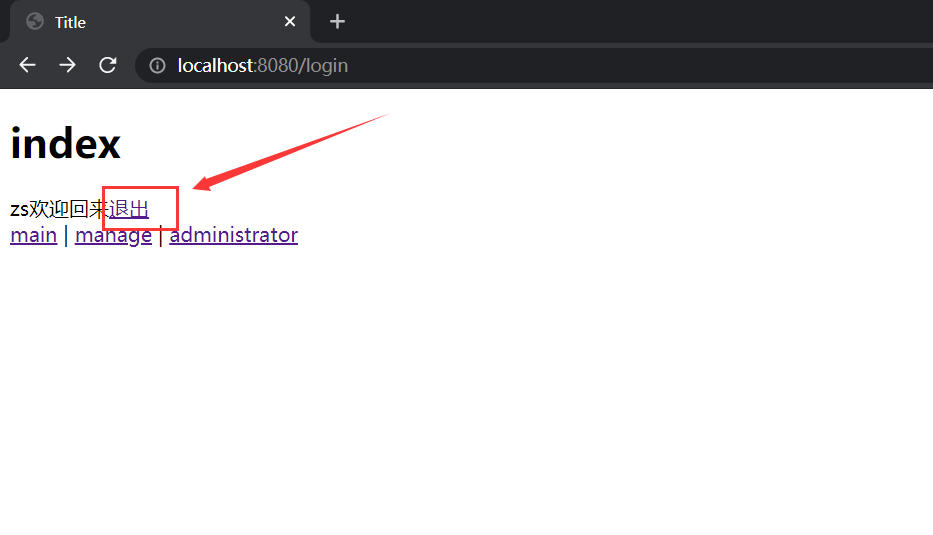

index页面可以点击“退出”来注销当前用户,此时关于该用户的session信息、认证信息、权限信息都将会移除,之后会重定向至login页面

image-20210823230025189

总结

至此关于SpringBoot整合Shiro的简易整合已经全部完成,除了用户“zs”,你也可登录其他用户如“ls”、”ww”等,他们分别具有不同的权限,因此可访问的页面也各不相同,具体效果请自行测试。
